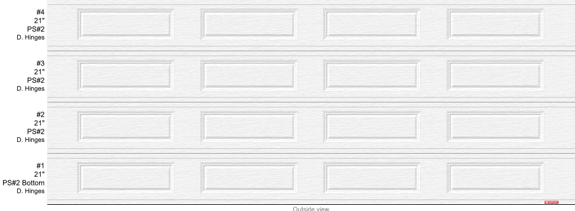

ACADIA 138 18x7 R12
Complete Read to install with all hardware included
|
2" (bolted) resid. torsion Hardware (hollow shaft) Features :
|
|
|
|||||||
|
Standard lift
|
|
|
|||||||
|
Single hinges
|
|
|
|||||||
|
Prepared for wood frame
|
|
|
|||||||
|
12 inch radius
|
|
|
|||||||
|
Roller 2-4 black nylon (short)
|
|
|
|||||||
|
10,000 cycle torsion spring(s)
|
|
|
|||||||
|
Weight (Door + Hrdw) : 257 lb.
|
|
|
|||||||
|
Weight (Hrdw) : 21 lb.
|
|
|
|||||||
|
Minimum headroom required(w/o door opener): 12 in.
|
|
|
|||||||
|
2" Reinforcement strut (1 per door)
|
|
|
|||||||
|
Spring weight correction : +5 %
|
|
1
|
INTERLOKTM JOINT |
![]() |
Located between sections, this joint blocks air infiltration due to its triple-contact weatherseal. |
![]() |
Makes sections very strong as it is mechanically interlocked and not bonded. |
|
|
|
|
2
|
WOOD END BLOCKS |
![]() |
The most effective thermal breaks, they eliminate any transfer of cold or heat between materials. |
|
|
|
|
3
|
REINFORCED METAL PLATES |
![]() |
With 14-gauge thickness, they are used to solidly attach hinges, handles and operator bracket. |
|
|
|
|
4
|
HIGH-PERFORMANCE WEATHER STRIPPING |
![]() |
Our weather stripping ensures increased weathertightness and stays flexible through the coldest temperatures. |
|
|
|
|
5
|
POLYURETHANE |
![]() |
High-pressure injected foam provides R-16 thermal resistance for 1 ¾” doors. |
![]() |
Because it adheres to the section walls, it provides a high level of rigidity to the door. |
|
|
|
|
6
|
CONTINUOUS WOODGRAIN |
![]() |
Up close or at a distance, our embossed woodgrain finish is flawless and very refined. |
|
|
|
|
7
|
MOLDED WINDOW FRAMES |
![]() |
Both our interior and exterior window frames are molded without joints or any visible screws. They are made of synthetic resin that is sun resistant to keep their good looks over the years. |
