BackStop 15Tall + Wings 30+30+30 + Overhang
C$0.00
In stock
BackStop 15Tall + Wings 30+30+30 + Overhang
Product Details

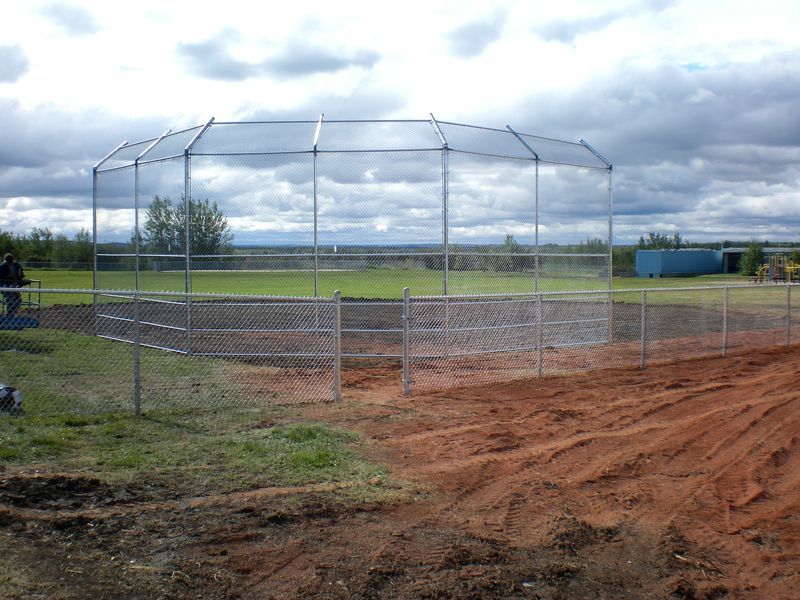

Galvanized Chain Link BackStops: are the most durable, economical and versatile system for Ball Diamonds and Backstops. It is based on a simple, easy to install, design of round tubular framework, woven wire mesh and connection fittings. The framework is manufactured from heavy-wall hot dip galvanized (corrosion resistant) steel pipe and the mesh is manufactured from heavy gauge galvanized wire. Our Fence Quality Control Program ensures that all components are manufactured in strict accordance with their respective Standards and Specifications.
BackStop: 15 FT tall + 42" Forward Overhang Package

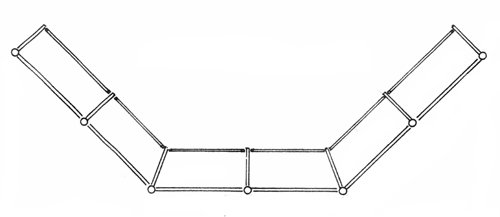

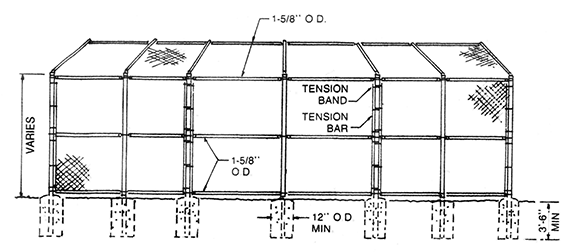

Wings: 30W+30W+30W + 9 Ga. 2" Mesh2-7/8" Terminal Sec 40 Pipe Upgrights ** Requires Concrete Footing **
2-3/8" Line Sec 40 Pipe Upgrights ** Requires Concrete Footing **
1-5/8" Sec 20 Cross Braces
9Ga Wire Mesh (8FT & 7FT Rolls)
Top Forward Overhang:
42" x 2-3/8" SS40 Pipe + 1-5/8" SS40 Braces + 11 Ga. 2" Mesh
Top & Center Cross Braces 1 5/8" - SS20 pipe
Hardware:
Includes all necessary hardware to assemble, braces, bands, bars, bolts, ties, rings,caps
