HOW TO Determine your Fence Needs:

Calculate the length of your fence perimeter, note any slopes or hills, and determine if it will be attached or free-standing. Divide the total number of linear feet by the size of the panels you plan to buy, typically 6 to 8 feet, to get the total number needed.

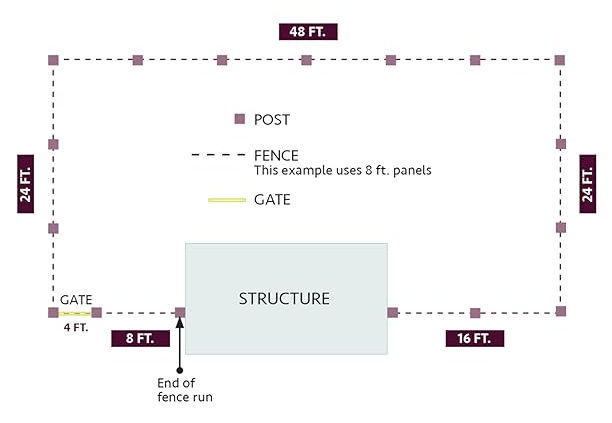

So, you want to build your own fence, but don't know where to start? Check out our handy fence calculator spreadsheet! The above example will help you determine how many panels, posts, gates, and post caps you will need to complete your project. Every DIY expert needs help sometimes. Still hesitating to hit the "buy it now" button? Contact our team and we would be happy to answer all your questions.

Panels - To calculate the number of fence panels needed, divide the lineal feet by the panel width.

Posts - Add 1 post per panel plus 1 to end a fence run and 1 for each gate.

Gates - As required (typically 1 or 2 per project).

Post Caps - 1 per post

Other Examples:

How To Set Up A Vinyl Fence Around Your House

A vinyl fence around your house usually will consist of line posts making up the outside perimeter while corner posts are added to the corners. End posts mark when a fence section will end.

Types Of Post Styles Available For Your Fence

When making your fence, there are a variety of post styles that you may need to ensure your fence is installed correctly.

Some post options include:

• Line Post: Are ready to accept fence panels on both sides.
• Corner Posts: Used anywhere there is a 90-degree angle.
• End Posts: Can be used to complete a run or used in between gates.
• Blank Posts: Used on the other side of the gate without a hinge, a fence panel will not be attached. These are usually used if your gate is against your house or another concrete structure.
• 3-Way Posts: These are created to continue the fence line and when needing to turn a corner.

The best part about vinyl fences is that they can be cut like wood. So, if you have a section that does not fit your backyard measurements, you can cut it to make it work.




Measuring For Your Vinyl Fence

Remember that you can purchase eight or six-foot sections in length when measuring for a vinyl fence. You can mix and match these sections depending on the length of your yard. It usually helps to draw a square diagram of the footage around your yard. Remember to include your gate measurements and how many gates you will require. Depending on what gate you select and the hardware you will need, you may need to measure your gate after it is assembled to get proper inside dimensions. For example, if your gate is 44.5" wide and requires 2" for gate hardware, your dimensions will now be 46.5".

To start measuring for your fence sections:

1. Measure around your fence and find the linear footage. You can do this using a tape measure or any tool to take measurements.
2. After you complete this, round your linear footage to the nearest foot. (Remember that if the 8-foot and 6-foot sections are the same height, you can mix and match these to find the required sections for your project.)
3. For example, if you measure 105 feet as the area you will need to fence in and want only to use 8-foot sections, you will need to round up to 14 complete sections. (Remember that if you need to include a gate, you must account for this in the measurements of what required sections you will need.) You can cut the final section to make it fit your fence configuration.

The sections will be the first thing you measure for.

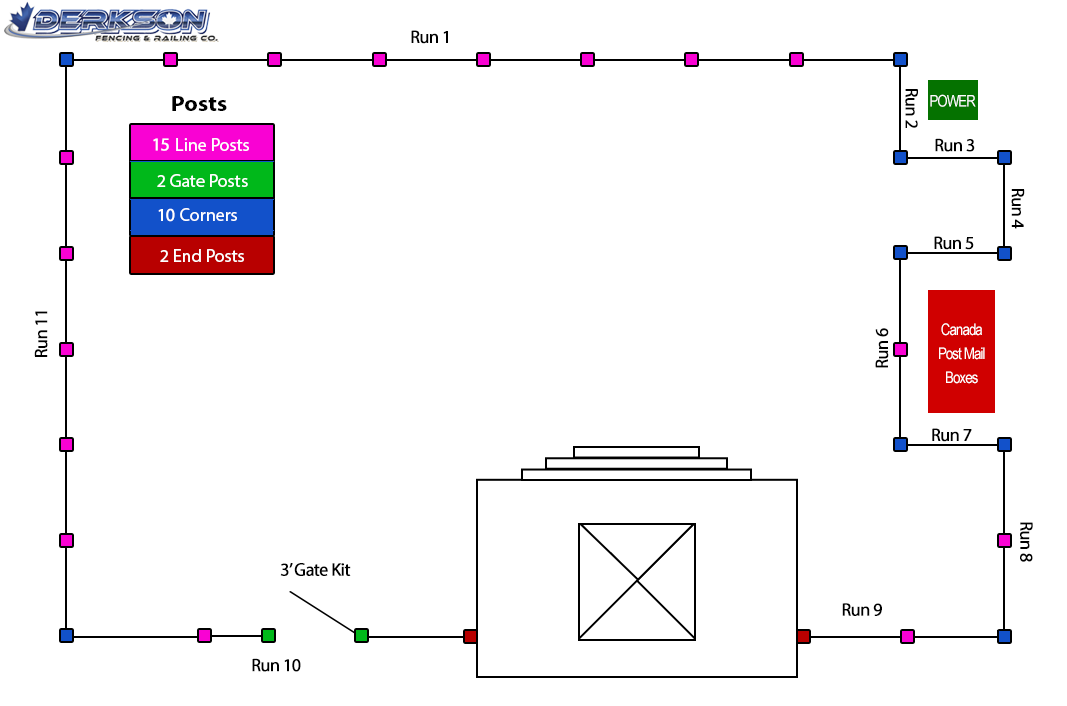

Example Of Measurements For A Yard Based On 6-Foot Vinyl Fence Sections



How Do I Measure For Posts?

You will likely need corner, line, and end posts to complete your setup with any fence configuration. The corner post will go anywhere you need to complete a corner. While the end post will mark the end of a section of fencing. Line posts keep attaching fence sections and continue the line of posts.

To measure how many posts you will need:

• Usually, the number of line posts you will need for your fence will be one less than the sections required. Many people like to draw a diagram of how their yard is structured to get a good feel of how many line post sections they need.
• For example, if one part of your yard lengthwise is 75 linear feet, and you want to use sections that are 8 feet long, you will need 10 sections. You will then subtract one from this number and get 9. This is how many line posts you need for that Run. Remember to add a corner and end posts to this selection, as you will need alwasy add your terminal posts.

Measuring For A Gate For Your Vinyl Fence Posts

If you plan on using a gate for your vinyl fence, you will need to include the two end posts if it is a single gate, and if you plan on installing the gate up against your house, you will need blank and end posts.

• The measurement of your gate will also determine how many sections and posts you will need. Always make sure to account for your gate before purchasing fence sections.
• When installing a gate, ensure you figure out how the gate will swing before installation and that you accommodate the gate hardware between your gate posts. Usually, a 1" gap is used to allow enough space for the hinge and latch.

Will You Need To Use The Stepping Or Racking Method For Your Fence Installation?

Another thing to consider is if your fence will go up a hill. If you notice a slope in your fence installation, you will need to run a string line to determine the slope of your yard. After you mark the slope, check the specifications of your fence to ensure it can accommodate the slope.

If your slope is quite steep, you should use the stepping method. The stepping method makes the fence even on the ground instead of at the top with the other posts.

Stepping Installation Methods

1. Use end posts instead of line posts and cut holes on the blank side of posts to allow for even installation.
2. Use end posts instead of line posts and use u-mount brackets on the blank side of the posts at the ideal length you have determined.
3. Use blank posts and place u-mount brackets on both sides of the posts.

Remember these important tips before getting started:

• Steeper inclines may need longer posts.
• If you use u-mount brackets, rails must be shortened because they will not go inside the posts.
• Make sure to install a panel and one post at a time.

Measuring For Your Vinyl Fence

While measuring for a vinyl fence can sound confusing, it is easier than it may seem. The key is to measure and plan out your yard's layout carefully. Remember to mark where corners will go, how many sections and line posts you need, and the slope if necessary.

Some Key Details About Vinyl Fence Measurements:

• You need to measure the linear footage of your yard, marking how many sections you will need.
• Remember that if you need several vinyl fence sections for one line (the length of one side of your yard), you will need one less vinyl fence line post than the measured sections.
• Include your gate in your measurements and account for where it will fit. The gate will help determine the sections needed, too.

Once you have figured this out, it is time to purchase your vinyl fence. If you still have questions about vinyl fences and measurements, please get in touch with us today. Our helpful sales representatives will be happy to help.
